-UL cUL DLC certicate
-Philips Lumileds Chip, high CRI
-IP65 driver, Input voltage 100-277Vac
-150 x 85° lens angle
-Optional Light-controlled and surge protection function

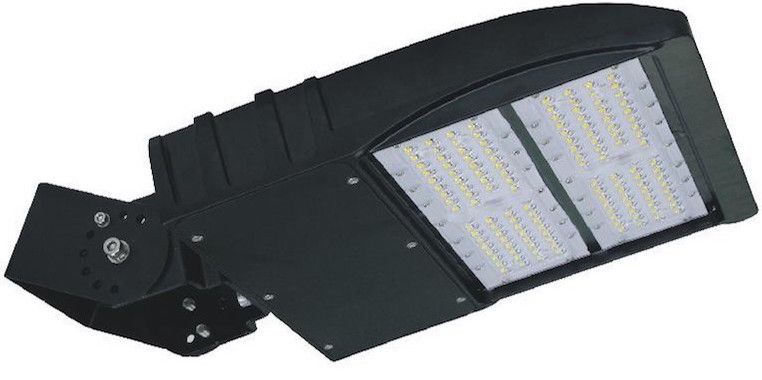

Category: Slim ShoeBox Light
LED Brand: Philips
Model Number: ES-S150HLT3YA1
-No UV or IR in the beam
-Easy to install and operate
-Energy saving, long lifespan
-Light is soft and uniform, safe to eyes
-Instant start, NO flickering, NO humming
-Green and eco-friendly without mercury
- Car Parking
- School Parking
- Plaza parking
Product Specifications
|
Product Name |
LED ShoeBox Light |
|
Part No |
ES-S150HLT3YA1 |
|
Dimension |
ES-S150HLT3AMA1：525x320x73mm ES-S150HLT3DMA1：515x320x73mm ES-S150HLT3YMA1：482x320x73mm ES-S150HLT3FMA1：410*350*136mm |
Technical Characteristics
|
Color Temperature |
4000K |
5000K |
5700K |
|
CRI |
>70 |
||
|
Lumen |
18000-19500LM |
||
|
Lumen Efficiency |
120-130 LM/W |
||
|
Input Power |
150W |
||
|
Input Voltage |
100-277Vac 50/60Hz |
||
|
Driver Model |
HLG-150H-48A（Mean Well Driver） |
||
|
PFC |
>0.9 |
||
|
Waterproof Rating |
IP65 |
||
Materials
|
LED Brand |
PHILIPS LUMILEDS |
|
LED Type |
LUXEON 3030 2D（1.5W） |
|
Optional Accessory |
Photocell Surge protector |
|
Housing |
Aluminum |
|
Housing color |
Black, Brown |
Others
|
Operating Temperature |
-20℃ TO 45℃ |
|
Operating Humidity |
20％-90％ RH |
|
Storage Temperature |
-30℃ TO 80℃ |
|
Storage Humidity |
10％-95％ |
|
Application |
Outdoor / Indoor |
|
Safety Certification |
UL, cUL, DLC |
|
Warranty Time |
1 Year |
