UL, CUL & DLC certificate
IP66 Waterproof Rating
Mean Well internal driver

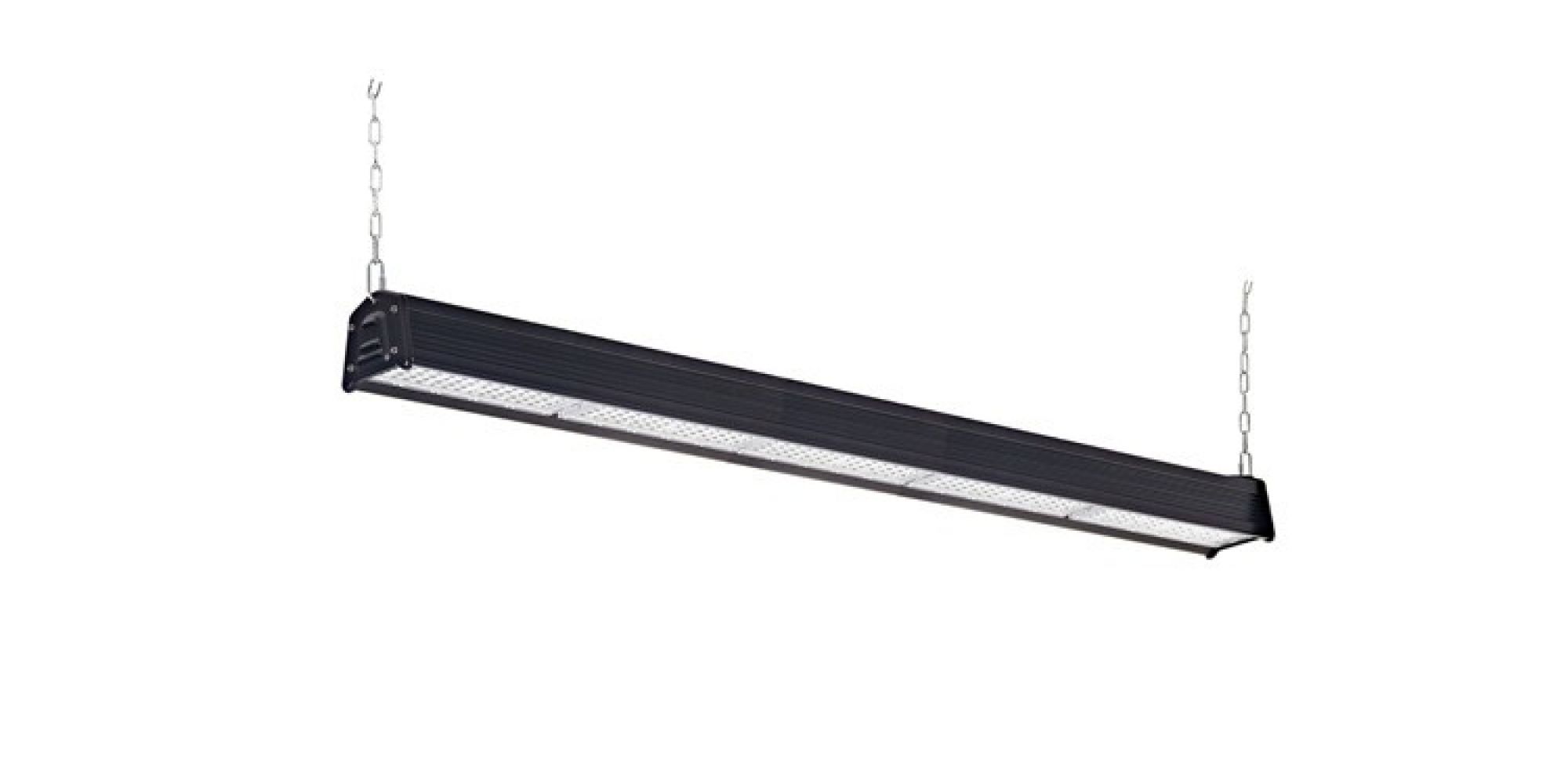

Category: Linear High Bay Light
LED Brand: Philips
Model Number: ES-H240-HLT1-A1
-No UV or IR in the beam
-Easy to install and operate
-Energy saving & long service life
-Light is soft and uniform (Easy on eyes)
-Instant start, NO flickering, NO humming
-Green and eco-friendly without mercury
-Workshop
-Warehouse
-Factory
-Cold store
-Parking lot
-Tunnels
-Highway toll station
-Exhibition hall
-Gymnasium
| TECHNICAL SPECIFICATION | |
| Dimension | 1509*142.2*112.5MM \ 1597*142.2*167MM |
| Color temperature | 4000K |
| CRI | >70 |
| Lumen | 30000-32400 LM |
| Lumen Efficacy | 125-135LM/W |
| Input Power | 240W |
| Viewing Angle | 90Degree |
| Input Voltage | 100-277Vac 50/60Hz |
| Driver model | HLG-240H-48B(1-10Vdc Dimmer) |
| PFC | >0.9 |
| Waterproof Rating | IP66 |
|
MATERIALS |
|
| LED Brand | PHILIPS LUMILEDS |
| LED Type | LUXEON 3030 2D |
